    Stainless Steel Special Vehicles , Urban Road Cleaning Street Sweeper Truck

    Ask Lasest Price
    Brand Name : XCMG
    Certification : CE
    Model Number : XZJ5060TSL
    Price : negotiate
    Delivery Time : 30-50 days
    Payment Terms : 30% deposit, balance before shipment
    Supply Ability : 10000pcs/year
    • Product Details
    • Company Profile

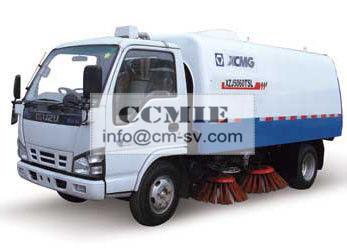

    Stainless Steel Special Vehicles , Urban Road Cleaning Street Sweeper Truck

    Stainless Steel Special Vehicles , Urban Road Cleaning Street Sweeper Truck
    Cleaning Street Sweeper Truck 1000L Special Purpose Vehicles Road Sweeper Vehicle

    1. Name: road sweeper truck, sweeping truck, road cleaner sweeper truck, vacuum sweeper truck
    2. Stainless steel trash box volume: 5m3
    3. Stainless steel water tank volume: 1000L
    4. Applications: useful for cleaning of urban road, square, airport, stadium, dock and school.
    5. Total mass: 6436kg
    6. Kerb mass: 4990kg
    7. Maximum width of sweeping: 3000mm
    8. Dimensions: 5700*1980*2500mm




    Description:

    Sweeper use a rotary brush to sweep the wasts to a position, and a high pressure fan of the suction system creat a vacuum in the suction cup to draw the wasts into the bin. To control the dust, whole process with water spray. Fuctions of water spray, sweep, suction and automatic unload are provided.


    Applications:

    Useful for cleaning of urban road, square, airport, stadium, dock and school.

    ­
    Specifications:

    Product model

    XZJ5060TSL

    Model of chassis

    NKR77LLLACJAY

    Model of Engine

    4KHl-TC

    Dimensions

    5700*1980*2500mm

    Total mass

    6436kg

    Kerb mass

    4990kg

    Maximum width of sweeping

    3000mm

    Stainless steel trash box volume

    5m3

    Stainless steel water tank volume

    1000L

    The auxiliary engine models

    JX493G3



    Competitive Advantage:

    1. Combined suction and sweeping, wet methods of dust elimination, make sure swept clean and also
    prevent dust from spread.
    2. It is convenient to perform operation in the cab, hand-operated pump installed on the outside of cab is
    used in case of emergency.
    3. Sub-engine drive blower and working equipment which ensure that power can meet the work demands in any case.
    4. Automatic clutch was fitted between sub-engine and blower, which ensure that sub-engine can be
    departed from blower automatically when no-load start and stop. In this way, the operation is sim plified ,
    and the impact against sub-engine are reduced, so the sub-engine work reliability and operation life are
    raised accordingly .
    5. Sweeping tray have the functions of avoiding obstacles and reposition automatically.
    6. Rotating speed of sweeping tray can be adjusted according to working condition.
    7. Advanced & efficiency air blower have the fine capacity of shock resistance and antirust.
    8. Independent water tank can be easy to clean special anticorrosive material greatly increased antirust
    abIlity.
