    Electrophoretic Coating XCMG 3 Ton Compact Wheel Loader LW300FN High Efficiency

    Ask Lasest Price
    Brand Name : XCMG
    Model Number : LW300FN
    Certification : CE, ISO
    Price : negotiated
    Payment Terms : 30% deposit, balance before shipment
    Supply Ability : 10000pcs/year
    Delivery Time : in 30 days
    • Product Details
    • Company Profile

    Electrophoretic Coating XCMG 3 Ton Compact Wheel Loader LW300FN High Efficiency

    Electrophoretic Coating XCMG 3 Ton Compact Wheel Loader LW300FN High Efficiency


    China TOP XCMG 3Ton Wheel Loader LW300FN And Original Spare Parts For Sale


    Features:


    LW300FN is the popular XCMG loader, the updaged edition of ZL30E (LW321F). With the features of maturity and reliability of the old model, LW300F is improved all round, and leads in the same kind of product. LW300FN adopts metal cab and hood, and electrophoretic coating. The machine features high efficiency, strong power, long service life and comfortability, and is applicable to various conditions.


    (1) Great strength


    Tilt cylinder bore of 160mm, enlarge the boom cylinder bore from 110mm to 125mm, and increase the boom lifting force by 29%.
    12-ton strong tilt drawing force guarantees the outstanding adaptation to various tough conditions.
    7-ton strong boom lifting force ensures various operation methods of high intensity.


    (2) High efficiency


    The adopted 125 work pump features large displacement, strong oil supply, and the total time of three devices is only 10.3s.
    The turning radius is only 5420mm, short running distance, fast loading speed, saving the fuel and high efficiency.
    Single pump distribution, load-sensing steering, large flow, enough power, simple and high efficiency.

    (3) High strength


    Heavy load design. The front and rear frames adopt box type, featuring thickness and high intensity.
    The key structural parts adopt finite-element analysis, ensuring the adaptation to various dangerous working conditions.

    (4) Long service life


    The key articulated positions feature two-stage dust-proof, less abrasion and longer service life.
    Wear resistant blade and bucket teethfeature longer service life.
    The hydraulic pipe adopts 24° cone and O ring, settling the issue of leakage.
    Easily worn oil pipe is equipped with the protective bush, prolonging the service life.
    High factor of full bucket
    Long bucket bottom, sharp bucket type, easily cutting in, much material.
    Lessen the opening angle, reduce the section, easily push in and lift.


    (5) Convenient maintenance


    The independent chamber design of the hydraulic oil tank return circuit guarantees the conveninence of the maintenance.
    The hood adopts the large side door of sliding upward, featureing large opening angle, and more convenient for access.
    The classic dead axle transmission features maturity, stability, and easy maintenance. The parts are easy to replace.


    (6) Comfortable operation


    The cab features luxury decoration, large space and excellent visibitity.
    The adjustable seat features comfortability and elegance.
    Key breakthrough in the leading level of the industry.
    XCMG starts the vehicle manufacturing technology first in China; including metal cover part and electrophoretic coating, and featuring high residual value.


    Parameter:


    ItemParameterUnit
    Rated load3.0t
    Bucket capacity1.8m3
    Dumping height2892mm
    Dumping distance1104mm
    Max. drawing force≥120kN
    Max. traction≥90kN
    Dimension (Length × Width × Height )6905×2470×3028mm
    Operating weight10.0t
    Boom lifting time5.65s
    Total time of three devices10.3s
    Wheelbase2600mm
    Min. turning radius (bucket outer)5925mm
    Rated power92km/h
    Travel speed I Gear (Forward/Backward)0~10/14km/h
    II Gear (Forward/Backward)0~16/25km/h
    III Gear (Forward)0~21km/h
    IV Gear (Forward)0~35km/h
    Boom Parameter
    Bucket capacity1.5/1.8m3
    Rated load2.6/2.6t
    Dimension (Length × Width × Height)7127×2470×3028;7226×2470×3028mm
    Dumping height3253/3200mm
    Dumping distance1051/1142mm
    Operating weight10.2/10.2t
    Attachment parameter-grasping grass
    Dumping height2948mm
    Dumping distance2036mm
    Clamp body width2200mm
    Max. opening2800mm
    Attachment parameter-clamp(III)
    Dumping height2551mm
    Dumping distance837mm
    Min. circle diameter590mm
    Max. opening1700mm
    Attachment parameter-side dump
    Bucket width2650mm
    Dimension7.25×2650×3028mm
    Dumping height(straight/side) dumping2725/3524mm
    Dumping distance(straight/side) dumping1109/175mm
    Lifting height(straight/side) dumping4980/5928mm
    Attachment parameter-Sliding fork
    Fork folding angle17.2°
    Attachment length1575mm
    Attachment width1980mm
    Attachment height1200mm
    Fork teeth length1050mm

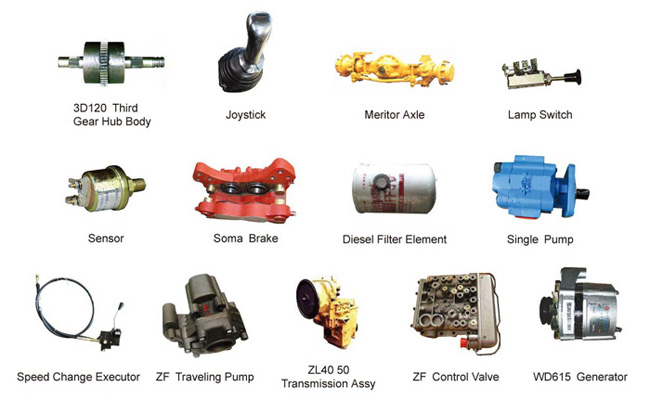

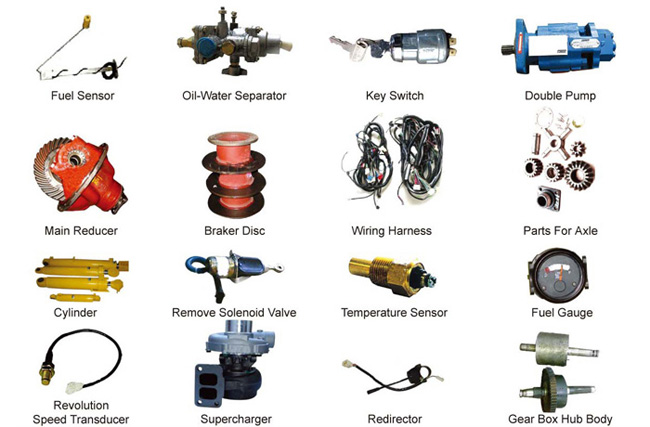

    Original Spare Parts:


    We can supply with all of original spare parts for XCMG wheel loader ZL50GN LW300FN LW500KN LW500FN etc. Such like oil filter, air filter, transmission, front axle, shaft gear from transmission, working pump, steering pump,steering unit, selective valve, multi-way valve, bucket teeth, tyre,gasket, etc.
